Industrial Water Cooling System Screw Chilling Machine Water Cooled Chiller

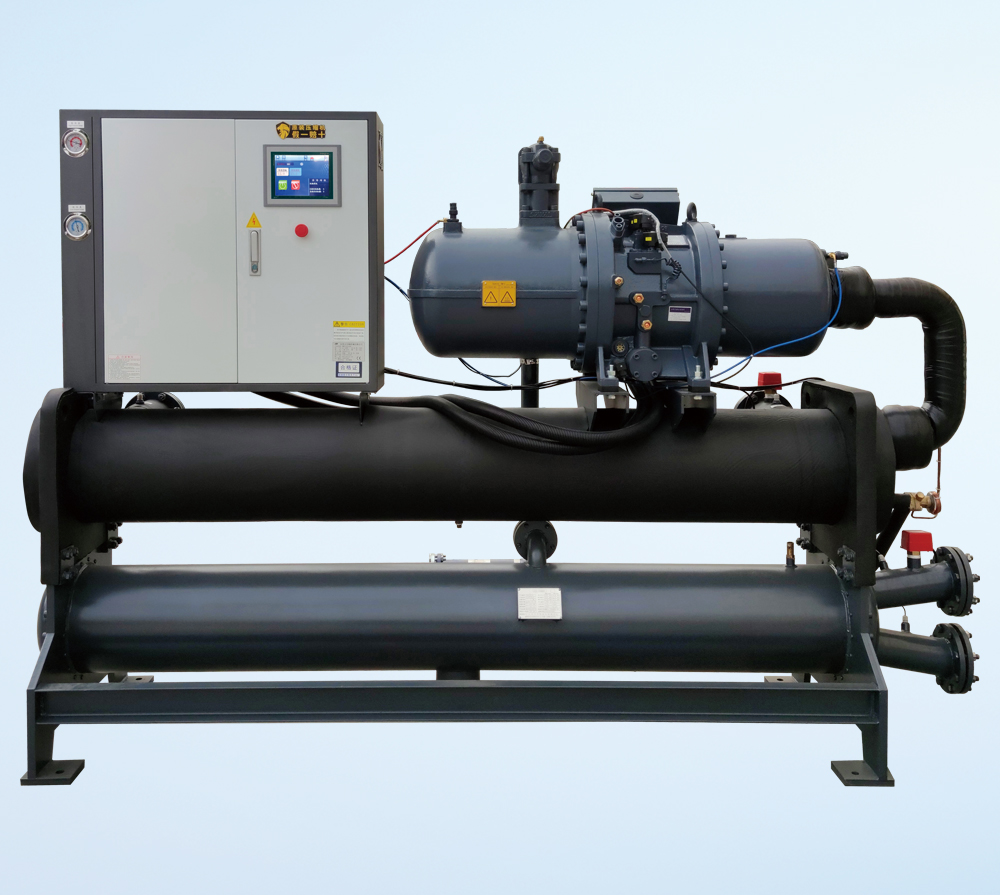

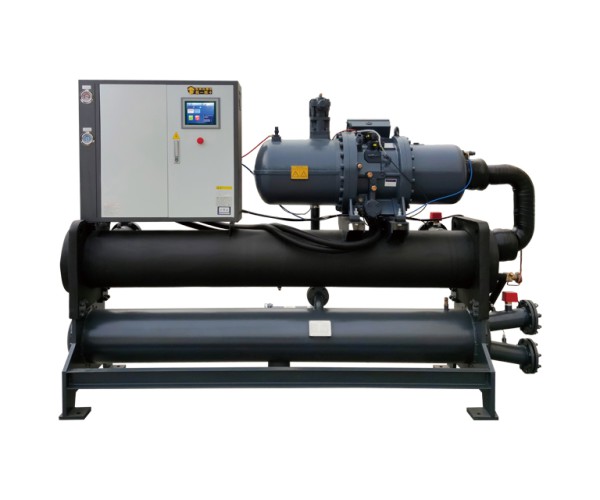

Water Cooled Screw Chiller
FAST COOLING
100HP WATER COOLED SCREW CHILLER
EIGHT PROTECTIONS,REFRIGERATION WORRY FREE

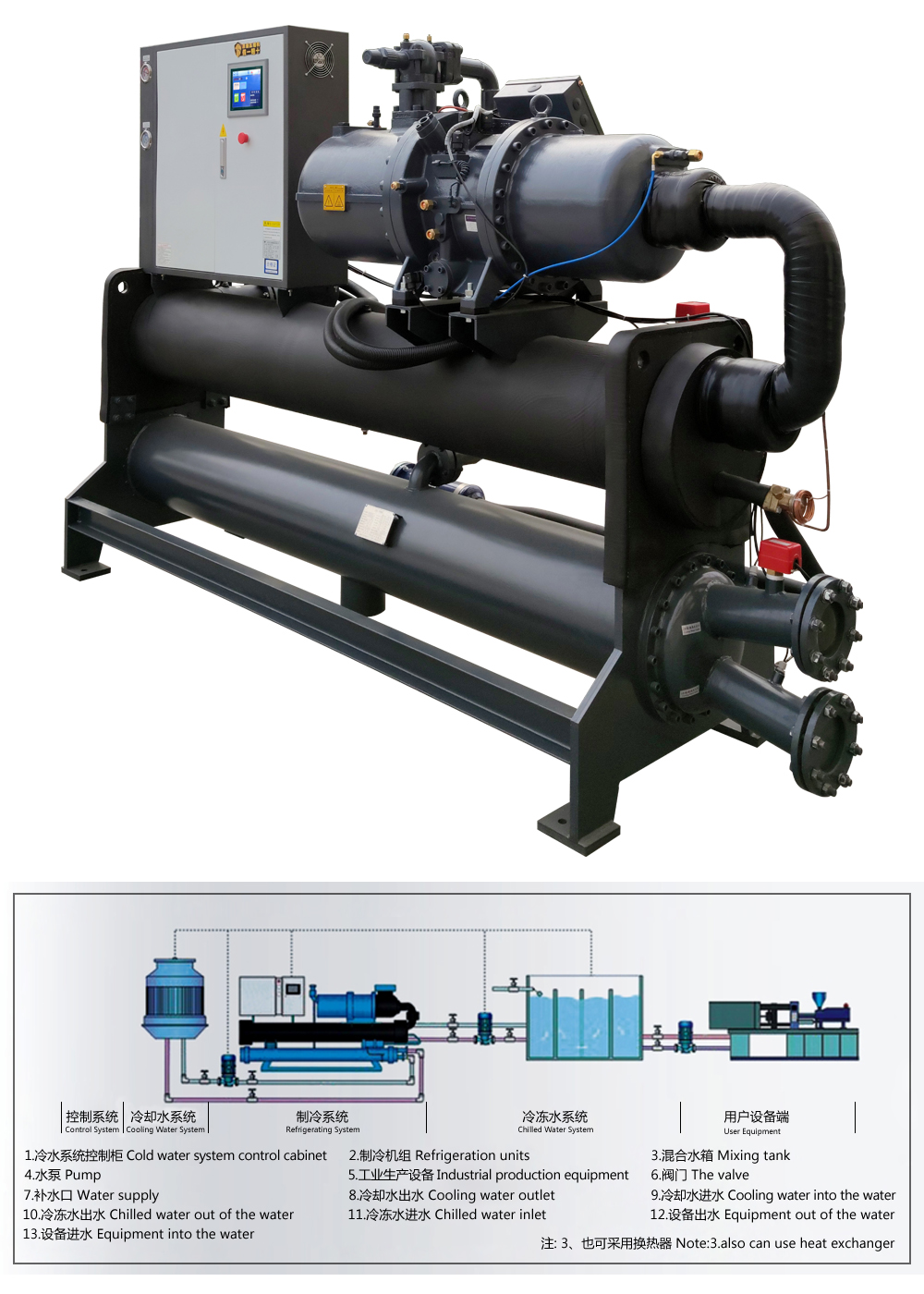

Industrial water chiller is to provide a cooling process in plastic molding, to improve quality of molded products and
shorten period of injection molding cycles. Hence maximizes productivity of plastic molding manufacturing.

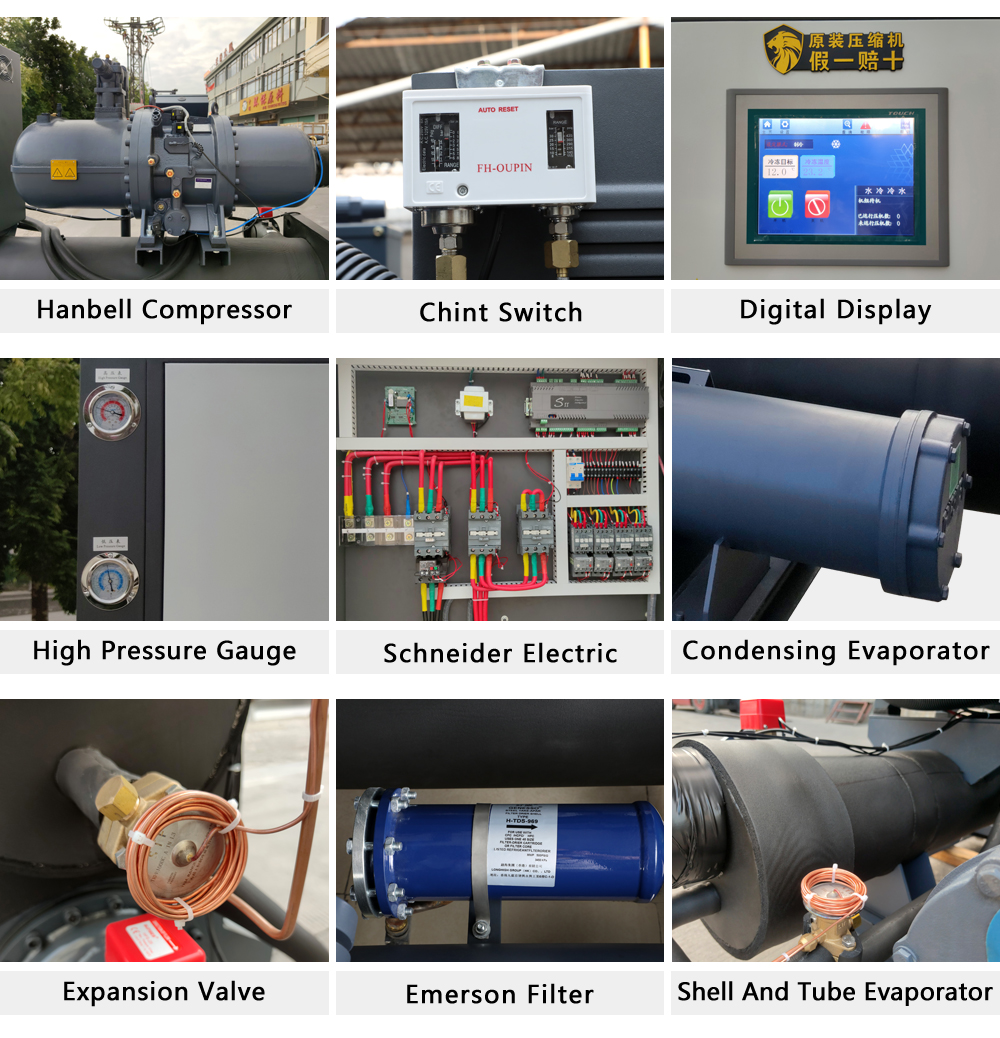

Details Of Water Cooled Screw Chiller

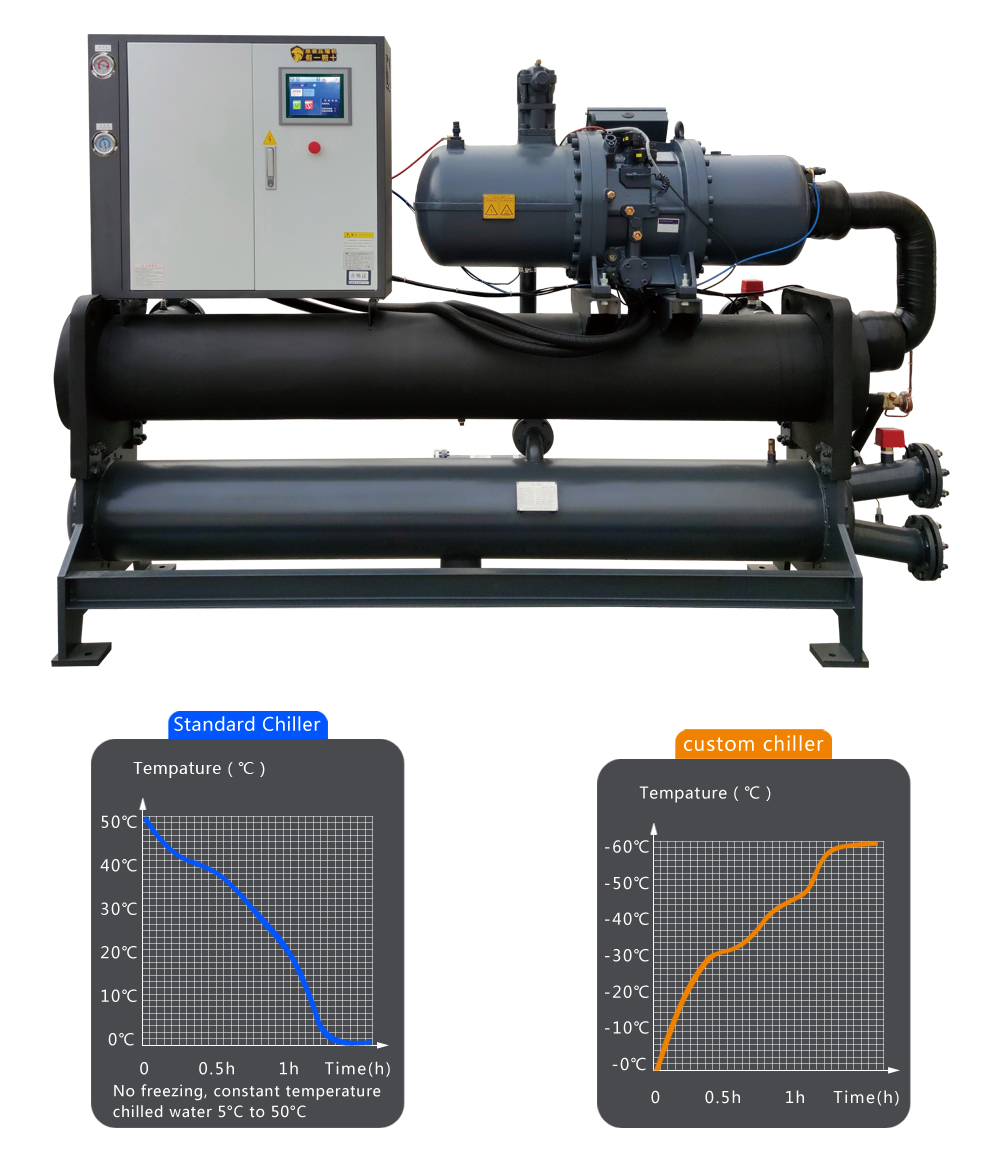

The temperature control range of the equipment can be customized for you according to your needs: 5ºC~-60ºC
can be customized with sub-zero cold and heat integration, corrosion resistance

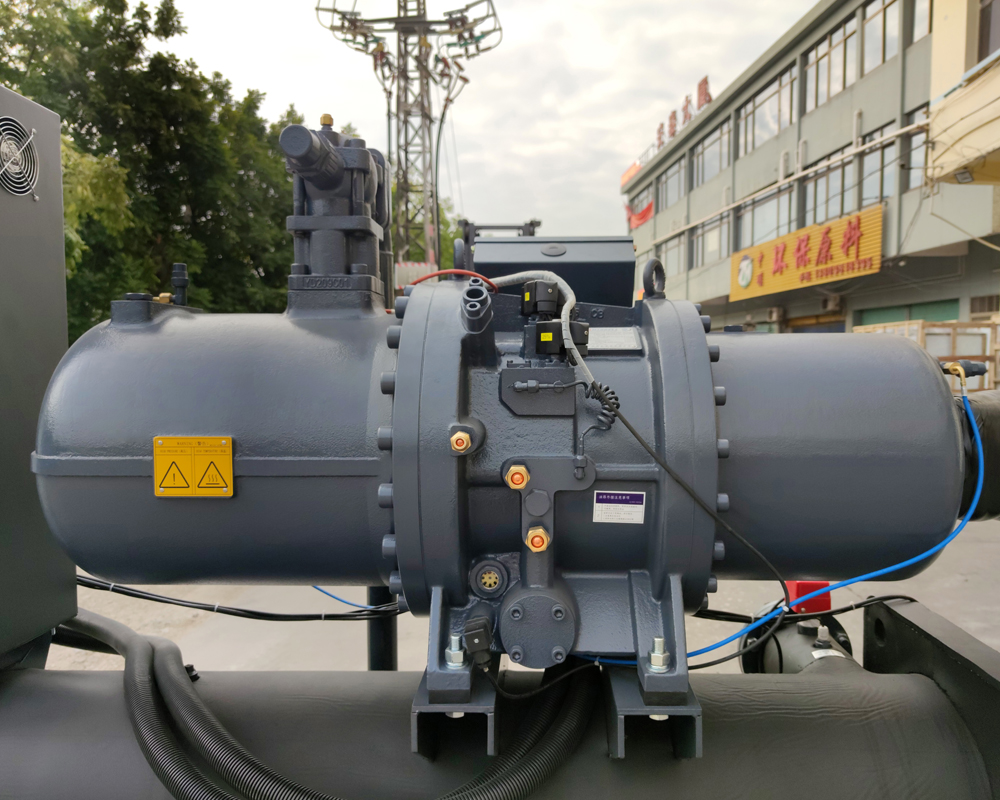

HANBELL COMPRESSOR,FULL OF ENERGY
Using high quality bearings, designed operating life under standard working conditionsUp to 50,000
hours or more, single head or double head
WHOLE MACHINE FACTORY,OPEN THE WOODEN CASE AND CAN USING IT
Before leaving the factory .alreadly test it just connect water pipe and wires. And then can use it.no need complex install.
WATER COOLED SCREW CHILLER PARAMETER
| MODEL | LC-90WS | LC-100WS | LC-120WS | |
| COOLING CAPACITY | KCAL/HX103 | 268 | 284 | 335 |
| KW | 312 | 330 | 390 | |
| USRT | 89 | 94 | 111 | |
| COOLING CAPACITY | 380V/3PH/50HZ | |||
| REFRIGERANT | R22/R407C/R134a | |||
| REFRIGERATION CIRCUIT | 1 | |||
| THROTTLING DEVICE | THERMAL EXPANSION VALVE/ELECTRONIC EXPANSION VALVE | |||
| COMPRESSOR | MODEL | SEMI-HERMETIC SCREW | ||
| STARTING | Y-△ | |||
| ENERGY CONTROL | 25%-50%-75%-100% | |||
| INPUT POWER(KW) | 63 | 66.3 | 79.6 | |
| RATED CURRENT(A) | 106 | 111 | 134 | |
| CONDENSER | TYPE | HIGH EFFICIENT INTERNAL THREAD COOPER PIPE SHELL AND TUBE TYPE | ||
| WATER FLOW(M3/H) | 64.5 | 68.2 | 80.8 | |
| PRESSURE LOSS(KPA) | 50 | 50 | 50 | |
| PIPE SPECIFICATIONS | DN100 | DN100 | DN100 | |
| EVAPORATOR | TYPE | HIGH EFFICIENT INTERNAL THREAD COOPER PIPE SHELL AND TUBE TYPE | ||
| WATER FLOW(M3/H) | 53.7 | 56.7 | 67.1 | |
| PRESSURE LOSS(KPA) | 65 | 65 | 65 | |
| PIPE SPECIFICATIONS | DN100 | DN100 | DN100 | |
| SAFETY DEVICES | OVERLOAD PROTECTION,HIGH AND LOW PRESSURE PROTECTION, EXHAUST OVERHEATING PROTECTION, ANTIFREEZE PROTECTION, POWER INVERSE PHASE PROTECTION, HYDRAULIC PROTECTION. | |||
| DB(A) | 60.8 | 61 | 63.8 | |
| DIMENSION | L(mm) | 3000 | 3000 | 3100 |
| W(mm) | 1000 | 1000 | 1100 | |
| H(mm) | 1800 | 1800 | 1900 | |
| MACHINE WEIGHT | KG | 1650 | 1750 | 1950 |
| OPERATING WEIGHT | KG | 1830 | 1950 | 2150 |
Guangdong Lechang Refrigeration Technology Co., Ltd was founded in 2009. Located in Chashan Town.Dongguan City.Guangdong province.
Specilized production industrial chiller,explosion-proof chiller.stainless steel chiller.Acid and alkali resistance chiller,low temperature chiller.adhering
to the business philosophy: "honesty,with emotion, good reputation,and excellent customer service " .Building a platform for employees and creating
value for customers are the company's core values. Lechang machines widely used in plastics, electronics, toys, medical, aerospace, chemical, food.
The annual sales volume exceeds 6,000 units.
FAQ
Q1:Are you a factory or trading company?
A:We are a factory and manufacturer specialized in cooled chiller more than 20 years, we provide wide range of industrial chillers available
to suit any cooling need.
Q2:What's warranty and after-sale service of machine?
A:Thirteen months Warranty for main machinery part like motor and electric;
Life-long maintenance service(Email and calling service in working hours)
Q3: How to install and run the machine?
A: Our technician have installed the machine before shipping.
Q4: How can I do if the machine goes wrong?
A: If confronted with such problems, please contact us asap and do not try fix the machine by yourself or someone else. We will response within
24 hours as quick as we can to solve it for you.
Q5:How about the quality of your product?
· Our products manufactured strictly according to national and international standard.
· We have CE, ISO certification.
· We take a test on every product before shipping.
Q6:Whether the product can be customized?
· We can make products according to customer's requirements.
Q7:Don't know which type you need?
A:Please send us your requirement or contact us directly!
Q8:Don't know how the machine working?
A:Contact us to see the video and get further information!
